10W wirelesss signal blocker power amplifier module 400mhz 500mhz 50mhz-7200mhz

Informations de base

Lieu d'origine:	Shenzhen Chine
Nom de marque:	TeXin
Certification:	CE ISO
Numéro de modèle:	TX-10W

Quantité de commande min:	2
Prix:	Négociable
Détails d'emballage:	boîtier durable
Délai de livraison:	5-8 jours
Conditions de paiement:	L / C, D / A, D / P, T / T, Western Union, Moneygram
Capacité d'approvisionnement:	1000 / mois

meilleur prix Contactez

Détail Infomation

Nom:	Amplificateur de puissance	Fréquence:	50-7200 MHz (personnalisé)
Tension de test:	28-32V	actuel:	1A
Sortir:	10W	Gagner:	43 dBm
Connecteur:	SMA / Femme	VSWR du connecteur de sortie:	≤1,30 (Test sans alimentation et avec analyseur de réseau)
fil d'alimentation électrique:	Le fil rouge + noir + activé	Taille de la coquille:	105 * 60 * 20
Poids:	278G

Description de produit

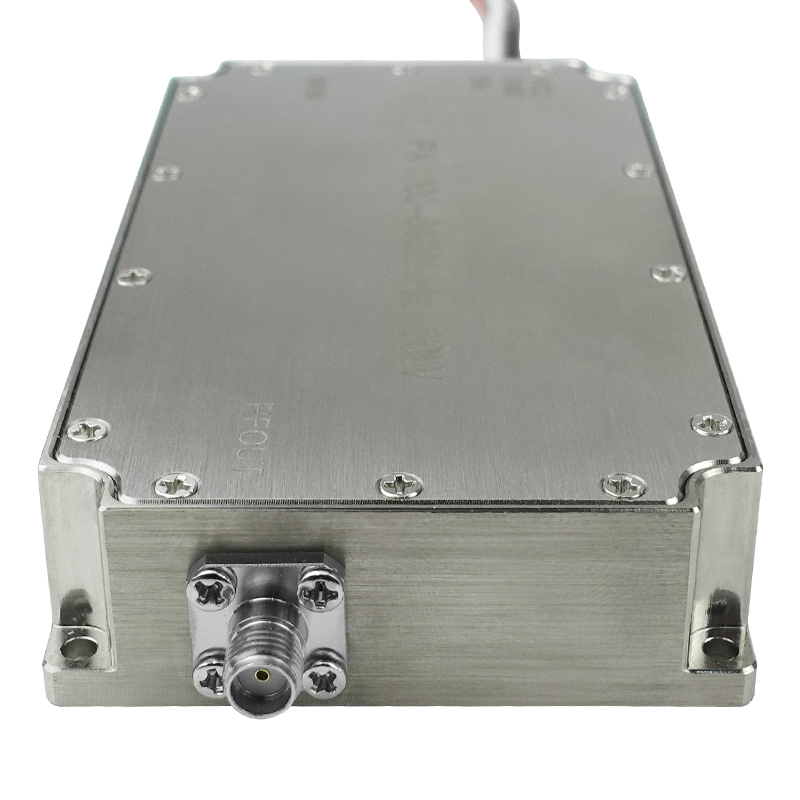

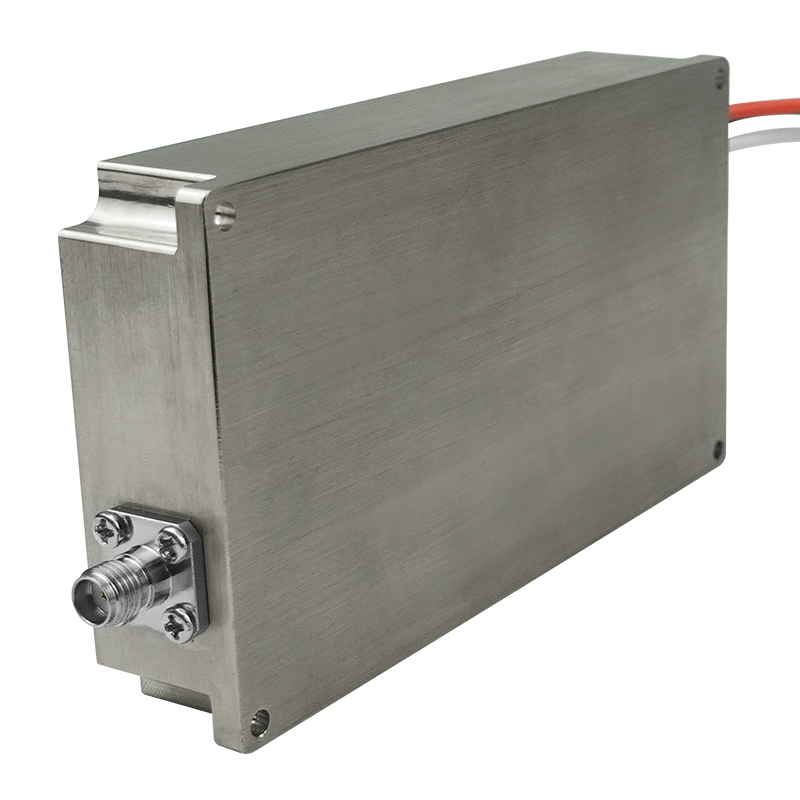

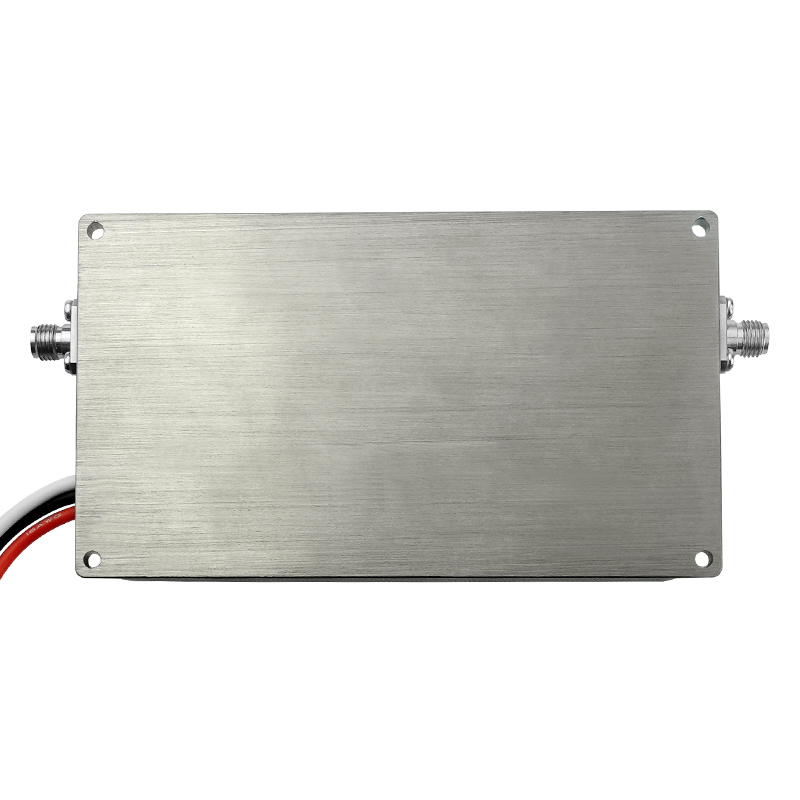

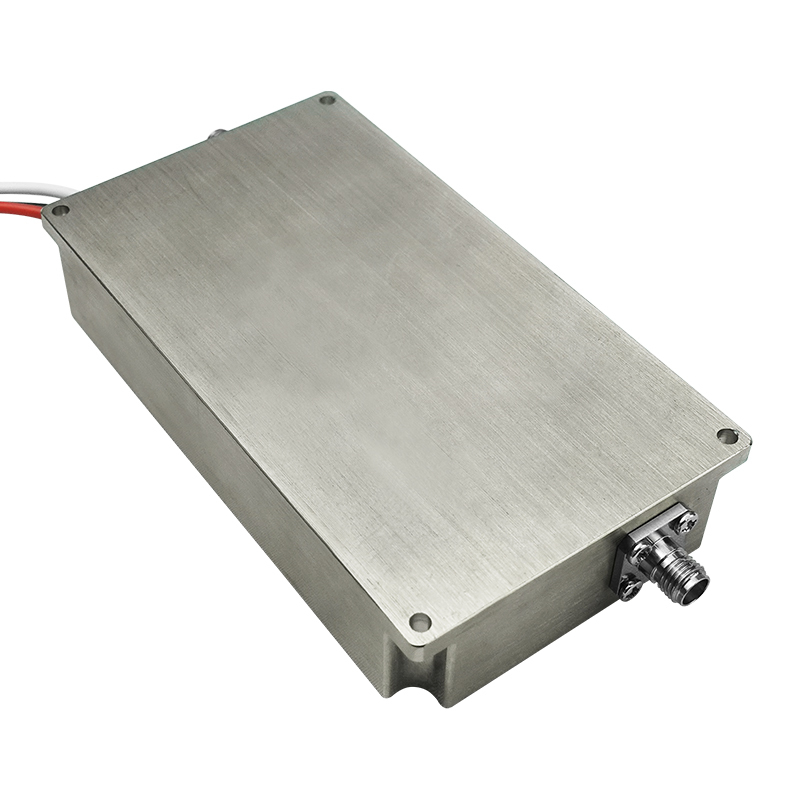

10W wirelesss signal blocker power amplifier module 400mhz 500mhz 50mhz-7200mhz

10W 50-7200MHz power amplifer module no signal source build in However, the module has been specially processed to directly cover the frequency band of 50-7000MHz. Customers can interfere with drones of corresponding frequency bands by connecting their own signal sources to achieve the purpose of protecting personal safety.

The module can be used in prisons, schools, governments, outdoor venues, concerts and other important places.

Product Attributes

Description	Symbol	Min	Typ		Max	Unit	Remark
Operating Frequency	BW	1.0			6.4	GHz
Input Power	Pin		0			dBm
Output Power CW	Psat	40				dBm	Continuous Wave
Power Gain	Gp	40			45	dBm	@ Pin=0 dBm
Small Singal Gain Flatness	△G				±2.0		@ Pin=-30 dBm
Power Gain Flatness	△Gp				±1.0	dB	@ Pin=0 dBm
Spurious Suppression	Spur		-60			dBc
Input Return Loss	S11		-15			dB
Operating Voltage	Vdc	28	28		36	V
Current Consumption	A				4	A	@ Psat
Switching Time	TON/TOFF		2		5	us	@ 1kHz TTL, Pin=0 dBm
RF Connector Input		SMA, Female
RF Connector Output		SMA, Female
Weight					0.3	Kg
LengthWidthHeight		105×60×20				mm
Max Input Power	PinMax	≤10				dBm
Interface Definition (Line)	VDD	Red Line		28Vdc
	GND	Blake Line		Ground
	SW	White Line		Amplifier Enable(Range :+3.3V to VDD)

10W wirelesss signal blocker power amplifier module 400mhz 500mhz 50mhz-7200mhz 1

Product Specification

		24V			30V			36V
Freq(MHz)	input(dBm)	Pout(dBm)	I(A)	η(%)	Pout(dBm)	I(A)	η(%)	Pout(dBm)	I(A)	η(%)
500	0	39.8	1.37	29.04%	41.39	1.58	29.06%	42.6	1.74	34.86%
600	0	40.9	1.3	39.43%	42.65	1.52	40.37%	43.95	1.78	46.50%
700	0	40.99	1.33	39.35%	42.89	1.55	41.84%	44.1	1.85	46.31%
800	0	41.3	1.4	40.15%	43.23	1.62	43.29%	44.7	1.79	54.96%
900	0	41.4	1.5	38.34%	43.35	1.71	42.16%	44.85	1.91	53.31%
1000	0	41.4	1.52	37.84%	43.38	1.74	41.72%	44.87	1.94	52.73%
1100	0	41.8	1.62	38.93%	43.67	1.84	42.18%	45	2.02	52.18%
1200	0	41.88	171	0.38%	43.6	1.92	39.77%	44.75	2.07	48.07%
1300	0	41.8	1.75	36.04%	43.52	1.98	37.86%	44.66	2.136	45.63%
1400	0	41.76	1.69	36.97%	43.43	1.9	38.65%	44.63	2.059	47.01%
1500	0	41.65	1.66	36.70%	43.23	1.85	37.91%	44.31	1.97	45.65%
1600	0	42	1.71	38.62%	43.61	1.92	39.86%	44.6	2.038	47.17%
1700	0	41.88	1.73	37.13%	43.45	1.95	37.83%	44.4	2.06	44.57%
1800	0	41.75	1.73	36.04%	43.34	1.98	36.33%	44.33	2.1	43.02%
1900	0	42	1.74	37.95%	43.57	1.95	38.89%	44.6	2.1	45.78%
2000	0	42.3	1.81	39.09%	43.96	2.06	40.27%	44.89	2.26	45.47%
2100	0	42.4	1.83	39.57%	44	2.11	39.68%	44.93	2.33	44.52%
2200	0	42.3	1.78	39.75%	43.84	2	40.35%	44.82	2.24	45.15%
2300	0	42.4	1.88	38.52%	43.96	2.02	41.07%	44.88	2.22	46.19%
2400	0	42.4	2	36.20%	44	2.16	38.76%	44.69	2.39	41.07%
2500	0	42.4	2.12	34.15%	43.9	2.38	34.38%	44.56	2.7	35.28%
2600	0	42.2	2.15	32.16%	43.6	2.39	31.95%	44.1	3	28.56%
2700	0	42.3	2.15	32.91%	43.94	2.72	30.36%	44.7	3.16	31.13%
2800	0	42.2	2.04	33.90%	43.96	2.55	32.53%	44.83	2.96	34.24%
2900	0	41.9	1.99	32.43%	43.71	2.39	32.77%	44.68	2.7	36.27%
3000	0	42.2	1.94	35.64%	43.97	2.25	36.96%	45.11	2.46	43.95%
3100	0	41.85	1.97	32.38%	43.66	2.17	35.68%	44.68	2.29	42.76%
3200	0	41.95	2	32.64%	43.7	2.3	33.97%	44.81	2.24	45.04%
3300	0	41.88	2.15	29.88%	43.58	2.38	31.94%	44.66	2.2	44.31%
3400	0	41.74	2.18	28.53%	43.54	2.42	31.12%	44.64	2.3	42.18%
3500	0	41.42	2	28.89%	43.28	2.43	29.19%	44.34	2.44	37.11%
3600	0	41.22	2	27.59%	43.17	2.44	28.35%	44.31	2.52	35.68%
3700	0	40.92	2	25.75%	42.88	2.34	27.65%	44	2.62	31.96%
3800	0	40.79	2.17	23.03%	42.51	2.43	24.45%	43.63	2.52	30.51%
3900	0	41.15	2.15	25.26%	42.8	2.43	26.14%	43.84	2.52	32.02%
4000	0	41.58	2.09	28.68%	43.1	2.41	28.24%	44.11	2.59	33.16%
4100	0	41.72	2.04	30.35%	43.52	2.39	31.37%	44.1	2.59	33.08%
4200	0	41.8	1.88	33.55%	43.22	2.22	31.52%	44.1	2.57	33.34%
4300	0	42.13	1.92	35.44%	43.59	2.21	34.47%	44.4	2.58	35.58%
4400	0	41.87	1.97	32.53%	43.38	2.2	33.00%	44.26	2.45	36.28%
4500	0	41.73	2	31.03%	43.31	2.19	32.62%	44.2	2.47	35.50%
4600	0	40.96	2	25.99%	42.77	2.18	28.93%	43.73	2.48	31.73%
4700	0	40.49	2.01	23.21%	42.3	2.1	26.96%	43.35	2.43	29.67%
4800	0	41.18	1.98	27.61%	42.9	2.14	30.37%	44.1	2.36	36.31%
4900	0	40.46	2	23.16%	42.23	2.15	25.91%	43.4	2.22	32.85%
5000	0	40.91	2	25.69%	42.6	2.13	28.48%	43.83	2.25	35.78%
5100	0	40.64	2.14	22.56%	42.3	2.25	25.16%	43.52	2.23	33.62%
5200	0	40.78	2.25	22.16%	42.44	2.42	24.16%	43.63	2.35	32.72%
5300	0	40.91	2.21	23.25%	42.52	2.41	24.71%	43.65	2.52	30.65%
5400	0	40.92	2.32	22.20%	42.57	2.54	23.72%	43.64	2.52	30.58%
5500	0	41.28	2.32	24.12%	42.91	2.53	25.75%	43.87	2.64	30.78%
5600	0	41.31	2.32	24.28%	43	2.52	26.39%	44.04	2.62	32.25%
5700	0	41.51	2.34	25.21%	43.28	2.55	27.82%	44.27	2.64	33.75%
5800	0	41.62	2.35	25.75%	43.3	2.57	27.73%	44.26	2.67	33.29%
5900	0	41.13	2.32	23.30%	42.9	2.49	26.10%	43.92	2.58	31.86%
6000	0	41.27	2.33	23.96%	43	2.5	26.60%	43.03	2.57	26.06%
6100	0	41.11	2.35	22.89%	42.78	2.51	25.19%	43.75	2.58	30.64%
6200	0	40.64	2.28	21.18%	42.23	2.45	22.74%	43.14	2.49	27.59%
6300	0	41.15	2.24	24.24%	42.71	2.41	25.81%	43.54	2.46	30.62%
6400	0	41.06	2.2	24.17%	42.71	2.38	26.14%	43.33	2.46	29.17%
6500	0	40.67	2.18	22.30%	42.27	2.34	24.02%	43.11	2.43	28.07%
6600	0	40.67	2.2	22.10%	42.29	2.37	23.83%	43.17	2.49	27.78%
6700	0	40.62	2.18	22.05%	42.33	2.35	24.26%	43.19	2.49	27.90%
6800	0	40.95	2.2	23.57%	42.47	2.37	24.84%	43.36	2.521	28.66%
6900	0	40.66	2.15	22.56%	42.28	2.35	23.98%	43.18	2.53	27.40%
7000	0	41.28	2.12	26.39%	42.91	2.34	27.84%	43.75	2.51	31.49%
7100	0	40.73	2.04	24.16%	42.34	2.27	25.17%	43.42	2.45	29.90%
7200	0	41.15	1.98	27.42%	42.85	2.52	25.50%	43.92	2.39	34.39%
7300	0	41	1.88	27.90%	42.74	2.12	29.55%	43.68	2.31	33.67%

Product Features

Mini size easy to carry
Lora source build in long distance jamming and low consumption
Frequency band and power can be customized
Made of aluminum material high heat dissipation
Light weight and small size easy to carry
The module support 24V-28V operate voltage

Applications

Military and Defense

In military operations, drone jammers play a vital role in counter-surveillance, protecting airspace, and neutralizing threats. They ensure operational security by preventing unauthorized drone activities.

Critical Infrastructure Protection

Airports, power plants, and government facilities rely on drone jammers to safeguard sensitive areas. These devices prevent potential disruptions and ensure uninterrupted operations.

Event Security

Public events like concerts, sports gatherings, and political rallies often face drone-related risks. Jammers provide effective solutions to prevent drone intrusions, ensuring participant safety.

1. Are you a manufacturer?

Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here

2. MOQ?

1 to 100pcs

3. Payment term?

T/T, Alibaba Trade Assurance(Visa, Master card, E-checking,etc), WestUnion, Paypal, etc

4. How to proceed with an order?

AA. Let us know your requirements and product application through inquiry on Alibaba website B. We quote according to your specification C.Customers agree with the quotation and make the payment

5. What do if I receive defective products?

Our strict quality control will ensure a 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.
