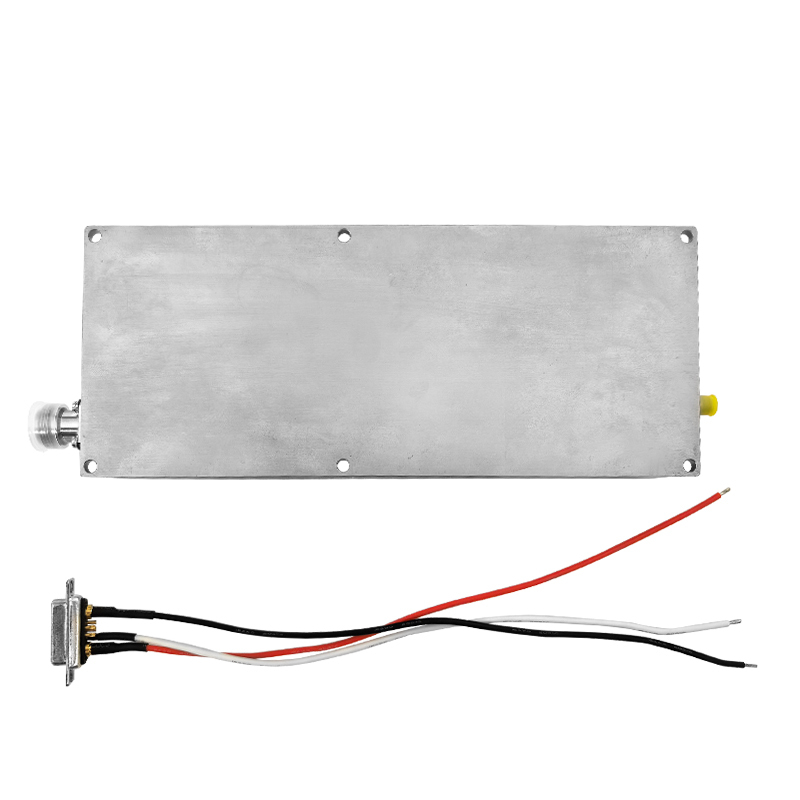

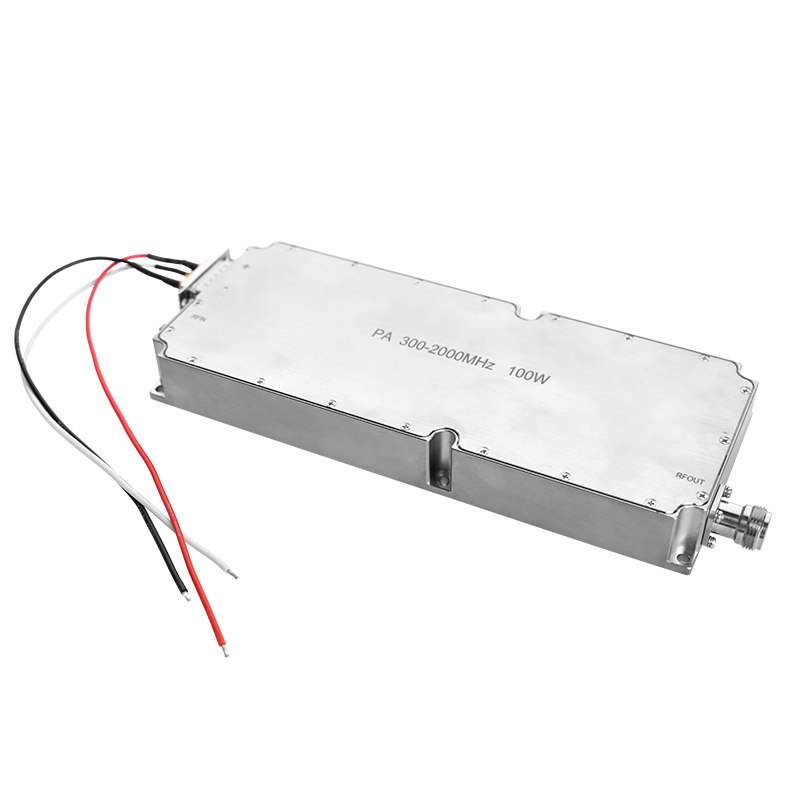

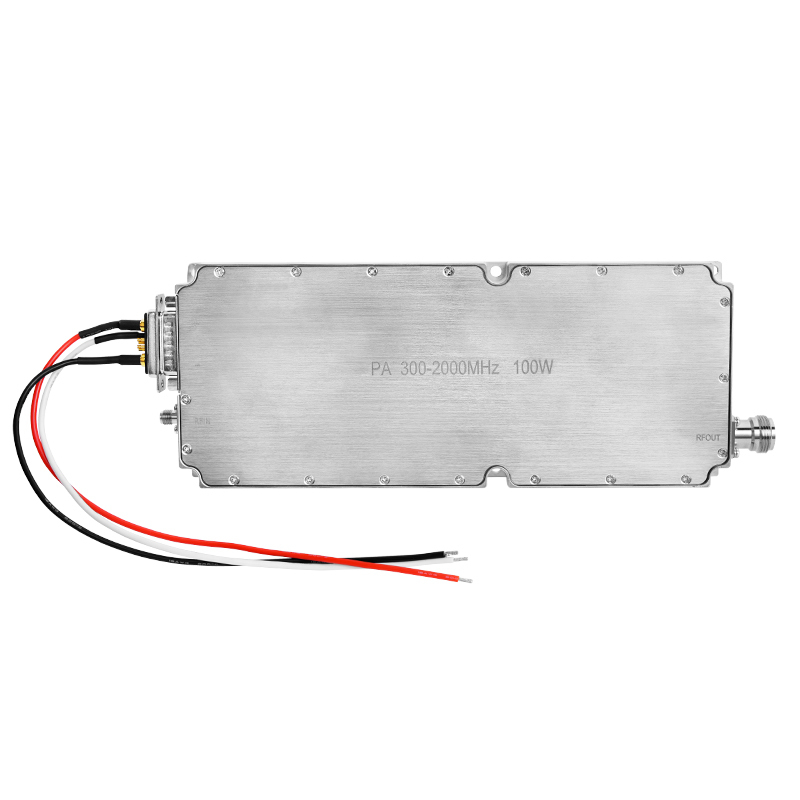

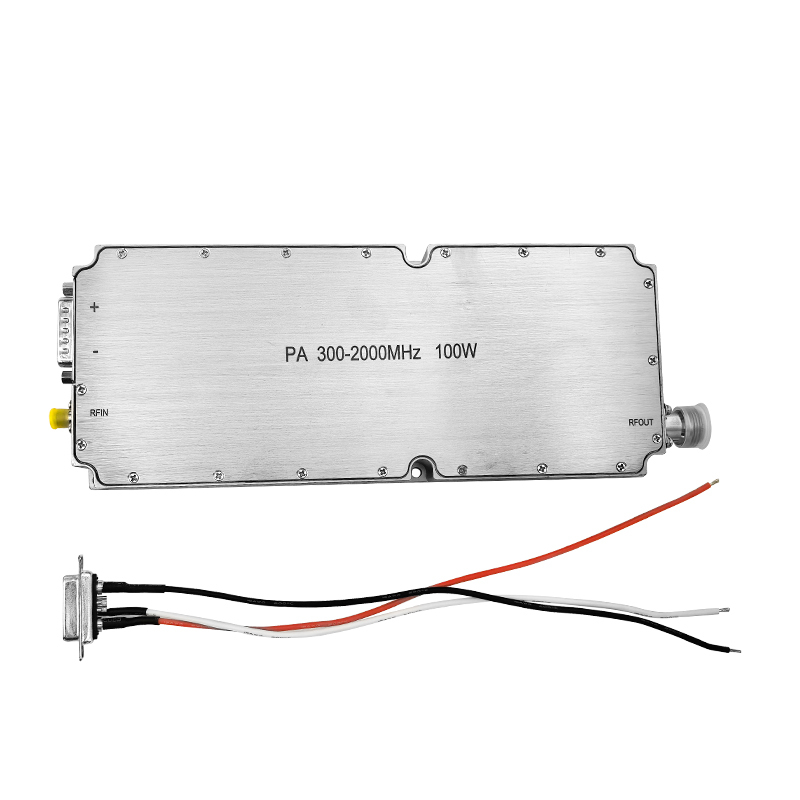

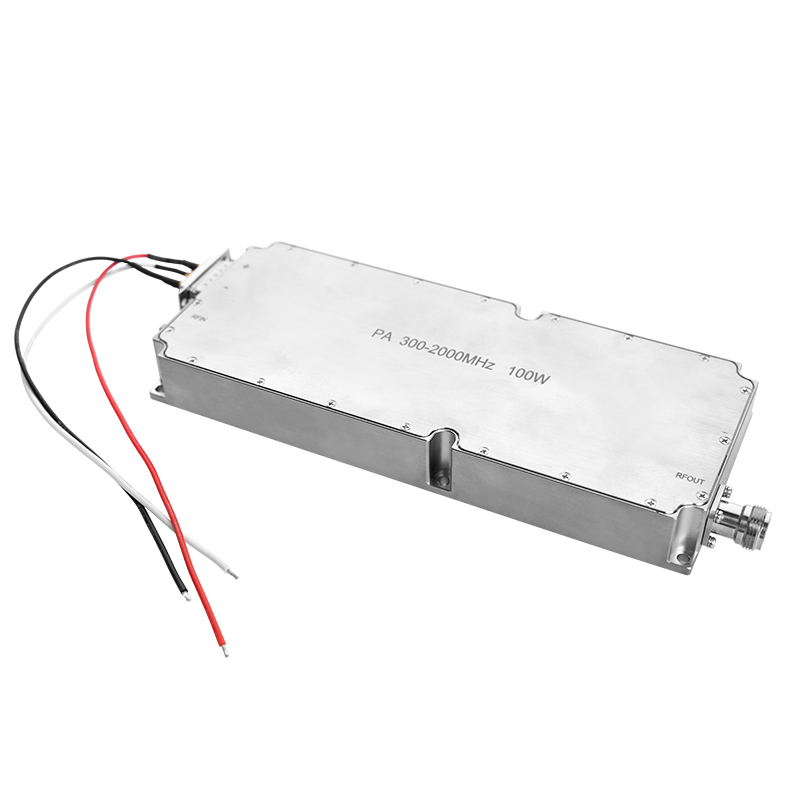

High Power Wide Band 300-2000MHz Power Amplifier Module for Anti-Drone WiFi System
Product Specifications
| Name |
300-2000MHz Power Amplifier |
| Output Power |
100W |
| Voltage |
28-32V |
| Application |
Anti-Drone System |
| Connector |
N/Female (customized) |
| Feature |
500-7300MHz 1000-6400MHz (support) |
| Size |
220×90×25mm |
| Weight |
950g |
| Material |
Aluminium |
| Vibration Requirement |
Car load OK |
Product Description
100W high power wide band 1000-3000MHz RF power amplifier with dual way connector that can highly efficient transmit signal. It can apply WiFi phone drone defense area. The frequency band/power/input can be customized to your needs.
Key Features
- 0-10dBm input customized
- 28-32V voltage support
- Wide band 300-2000MHz operation

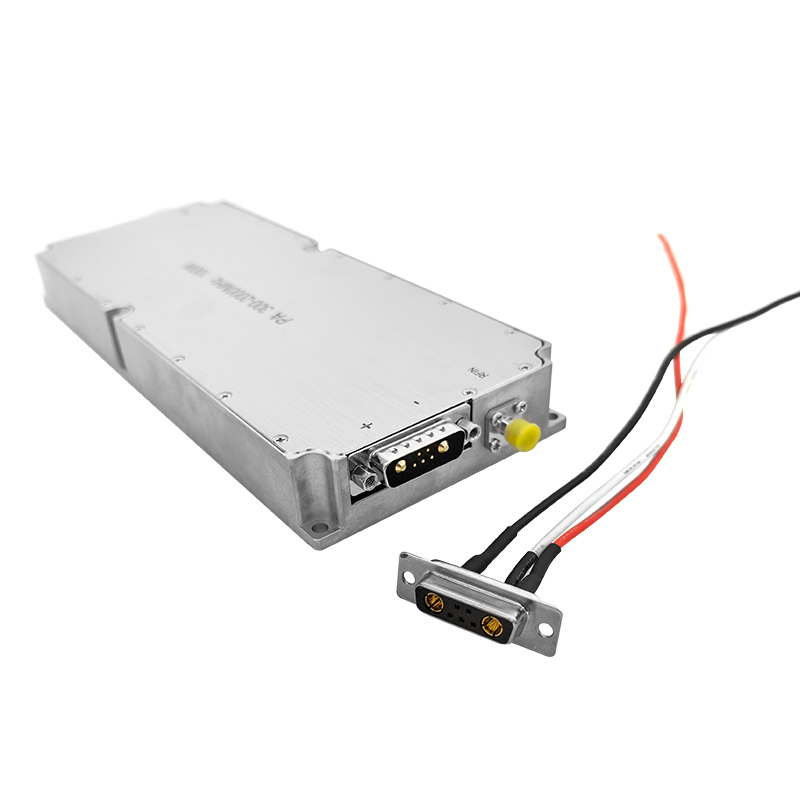

- Bidirectional two connector in S-input and N-output
- Light weight and portable
Technical Specifications
| No. |
Item |
Data |
Unit |
| 1 |
Frequency |
300-2000 |
MHz |
| 2 |
Test voltage |
28-32 |
V |
| 3 |
Current |
7 |
A |
| 4 |
Output |
100 |
W |
| 5 |
Gain |
53 |
dB |
| 6 |
Output stability |
1 |
dB |
| 7 |
Input stability |
0-10 |
dB |
| 8 |
Connector |
N/Female |
| 9 |
Output connector VSWR |
≤1.30 (No power and VNA test) |
| 10 |
Power supply wire |
Red+Black+Enable wire |
| 11 |
Enable Control |
High ON Low Off |
| 12 |

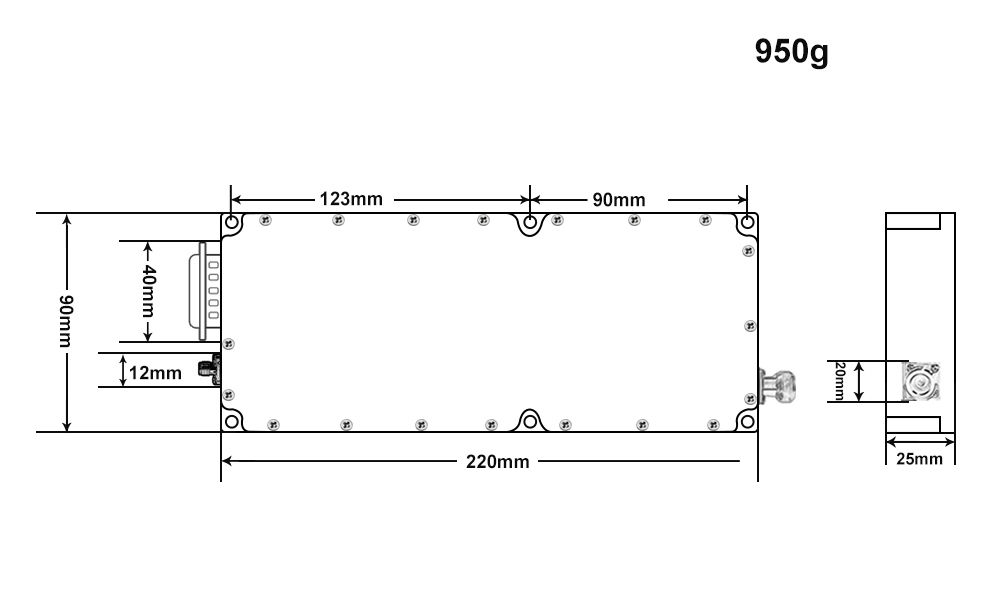

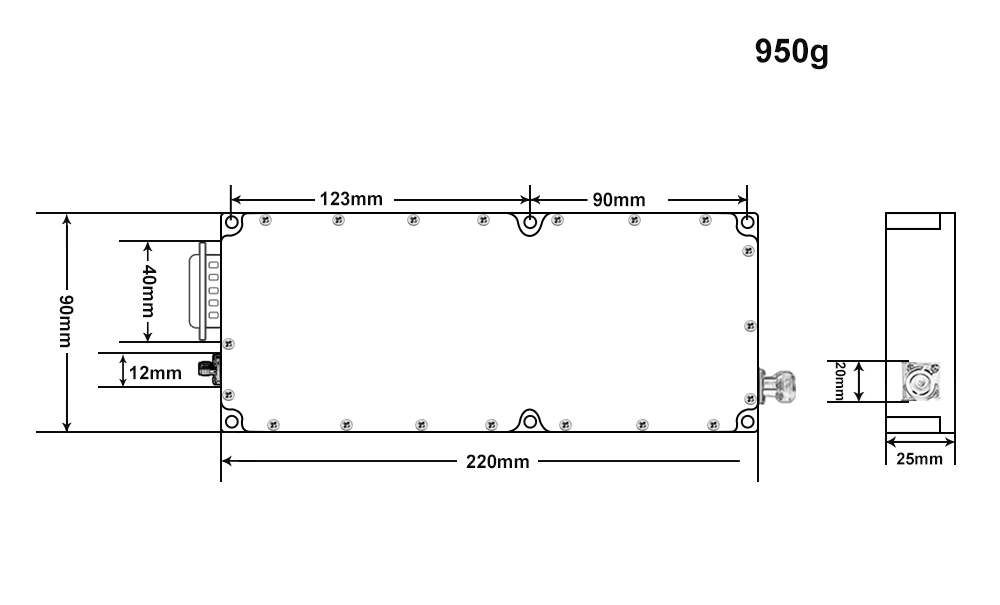

Out shell Size |
220*90*25 |
mm |
| 13 |
Mount hole |
220*90 |
mm |
| 14 |
Weight |
950 |
g |
| 15 |
Work Temperature |
-40~+65 |
℃ |
| 16 |
Out shell material |
Aluminum |
| 17 |
Vibration need |
Car load OK |
Working and Storage Environment Requirements
- Requires working environment of -40℃ to +65℃
- Operate voltage within 28-32V (option)
- Must connect antenna before use
- Long range distance working 1.5-2km with no obstructions
- When working at high power, a heat sink needs to be installed
Texin Factory Production Line
With the expansion of business, Texin has now opened more than 10 production lines, which can support large-volume orders. We have advanced debugging equipment and a professional technical team. Our drone countermeasure equipment is sold all over the world. Excellent products and high-quality services have won unlimited praise from customers. If you have any ideas, please feel free to consult. Shenzhen Texin Electronics Co., Ltd. looks forward to cooperating with you!
Usage Scenarios
Exhibition
Applications
Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
Frequently Asked Questions
1. Are you a manufacturer?
Yes, our factory is located in LongGang District, Shenzhen. Welcome to visit us here.
3. Payment term?
T/T, Alibaba Trade Assurance (Visa, Mastercard, E-checking, etc), WestUnion, Paypal, etc.
4. How to proceed an order?
A. Let us know your requirement and product application through inquiry on Alibaba website. B. We quote according to your specific need. C. Customers agree with the quotation and make the payment.
5. How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in transit. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
